Existing and proposed site plans of a detached Kingston house by Atelier AṅK, showing open-plan kitchen/living, fully lit stairwell with windows on each landing and skylight, and large hallway convertible to a utility room

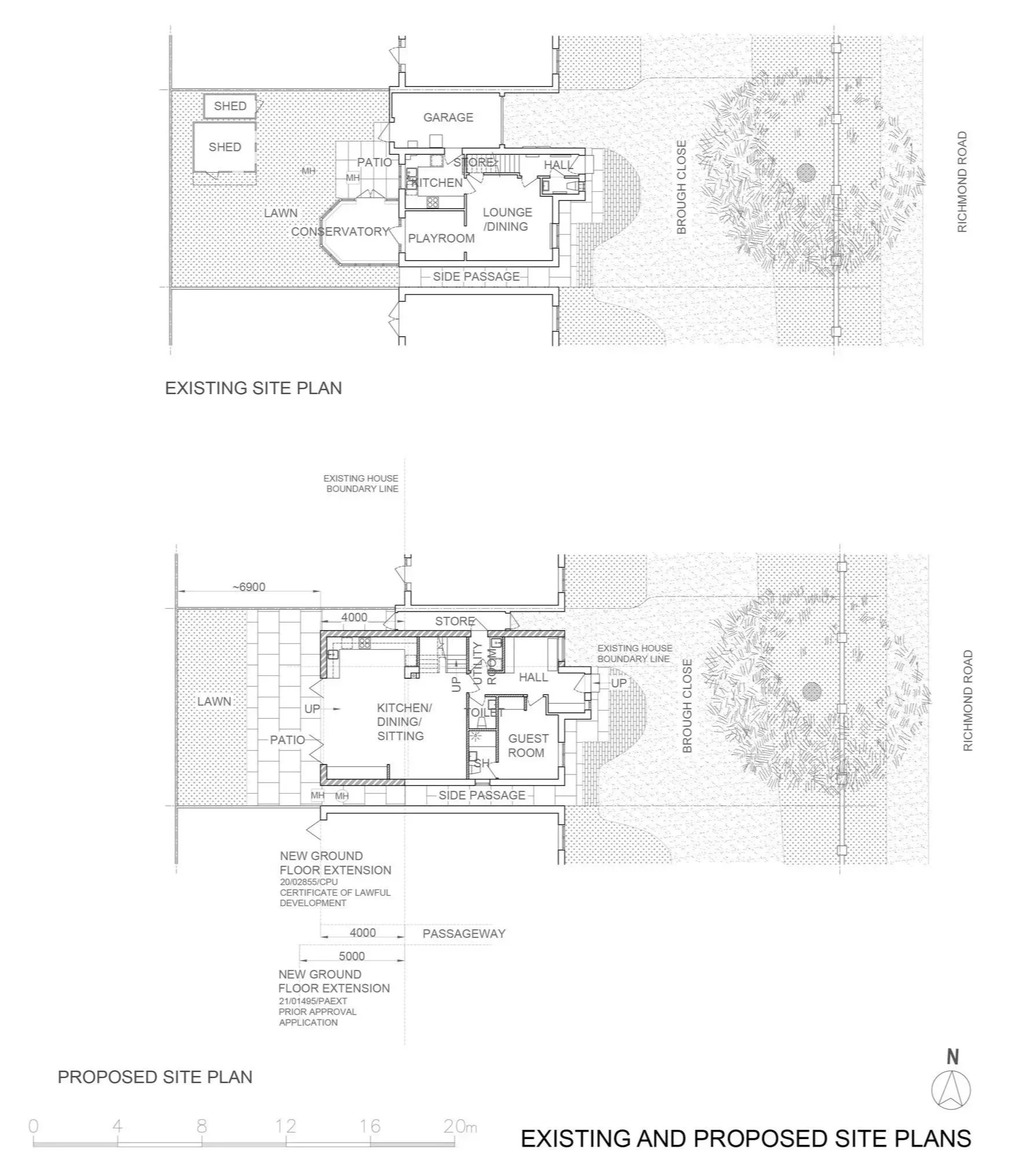

Existing and proposed site plans by Atelier AnK of a detached Kingston house, showing open-plan kitchen/living, fully lit stairwell with windows on each landing and skylight, and large hallway convertible to a utility room

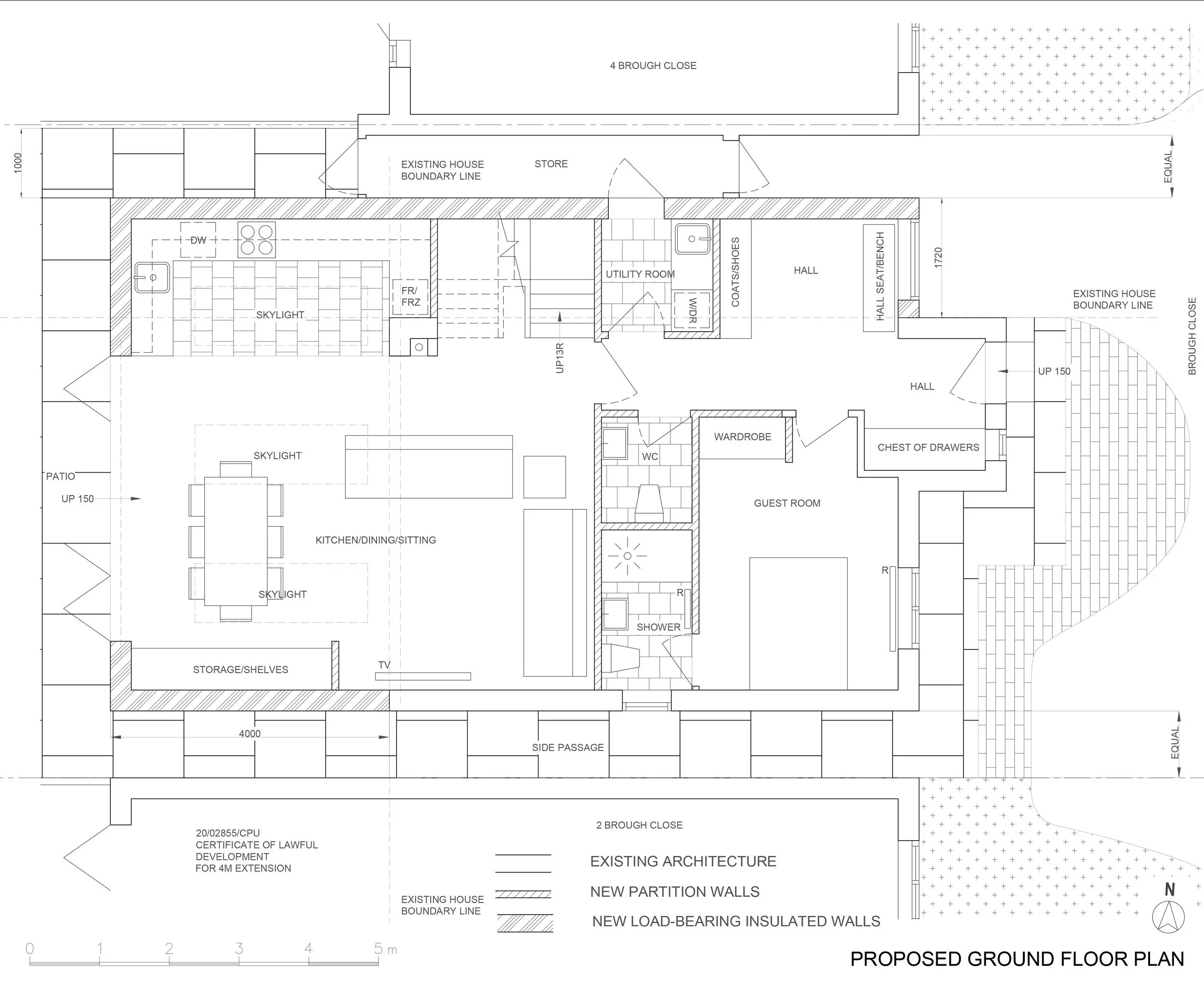

Proposed ground floor plan of a Kingston upon Thames house by Atelier AṅK, showing open-plan kitchen/living, fully lit staircase, enlarged hallway convertible to utility, and other rooms

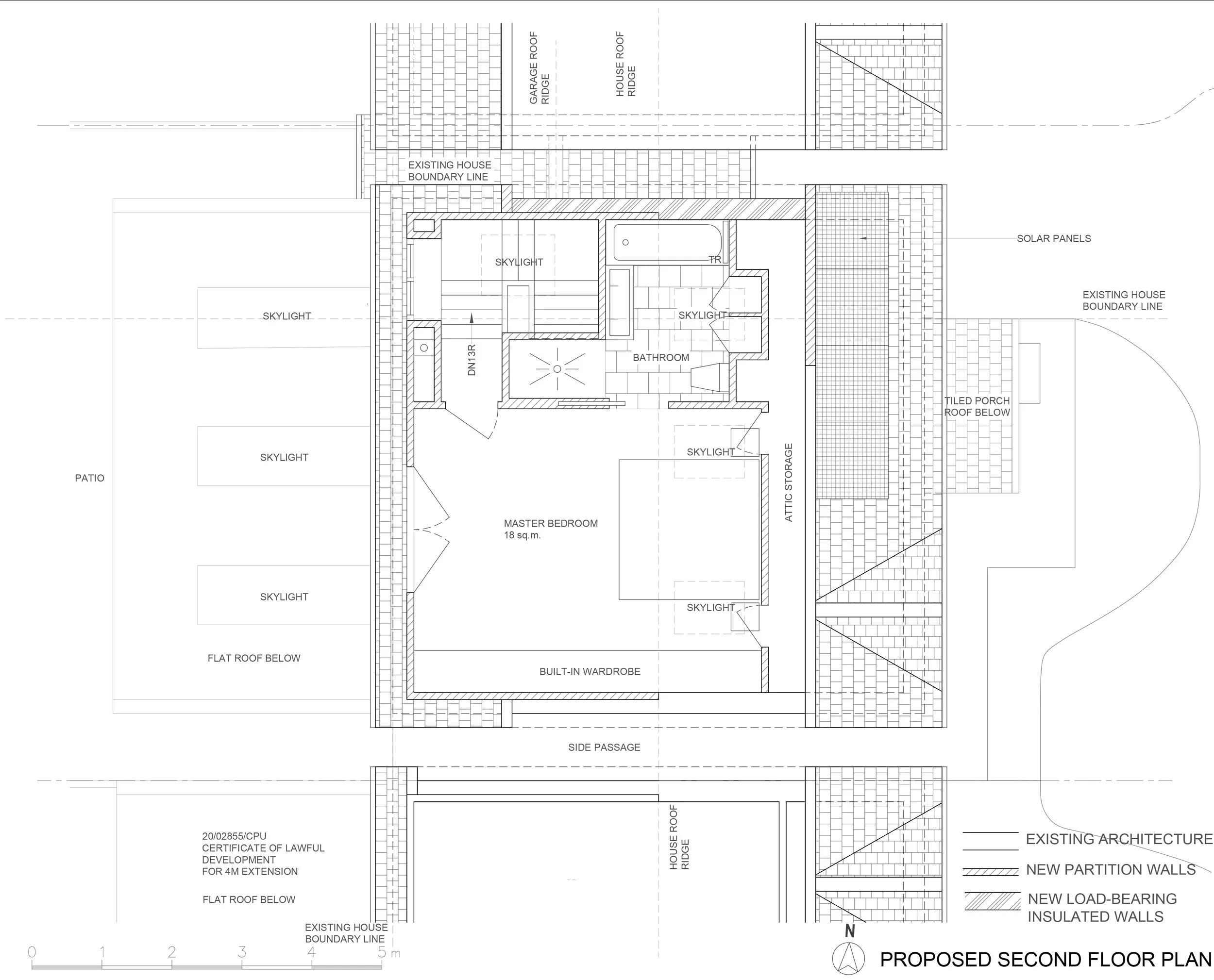

Proposed loft plan of a detached Kingston house by Atelier AṅK, showing a large master bedroom with spacious en-suite bathroom and a Juliet balcony

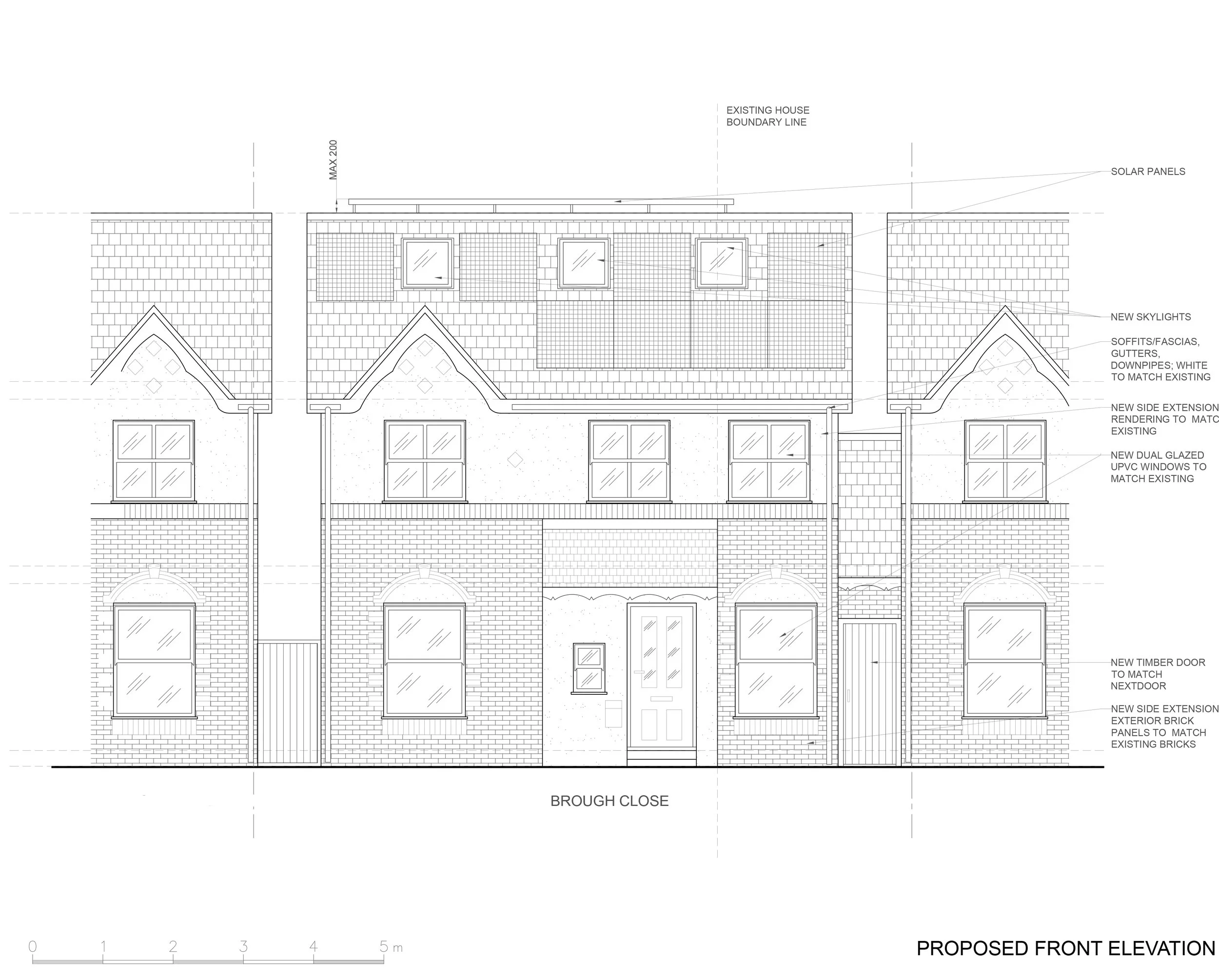

Front elevation of a detached Kingston house by Atelier AṅK, showing the existing façade with windows and entrance, and the new two-storey side extension integrated into the roofline and overall design

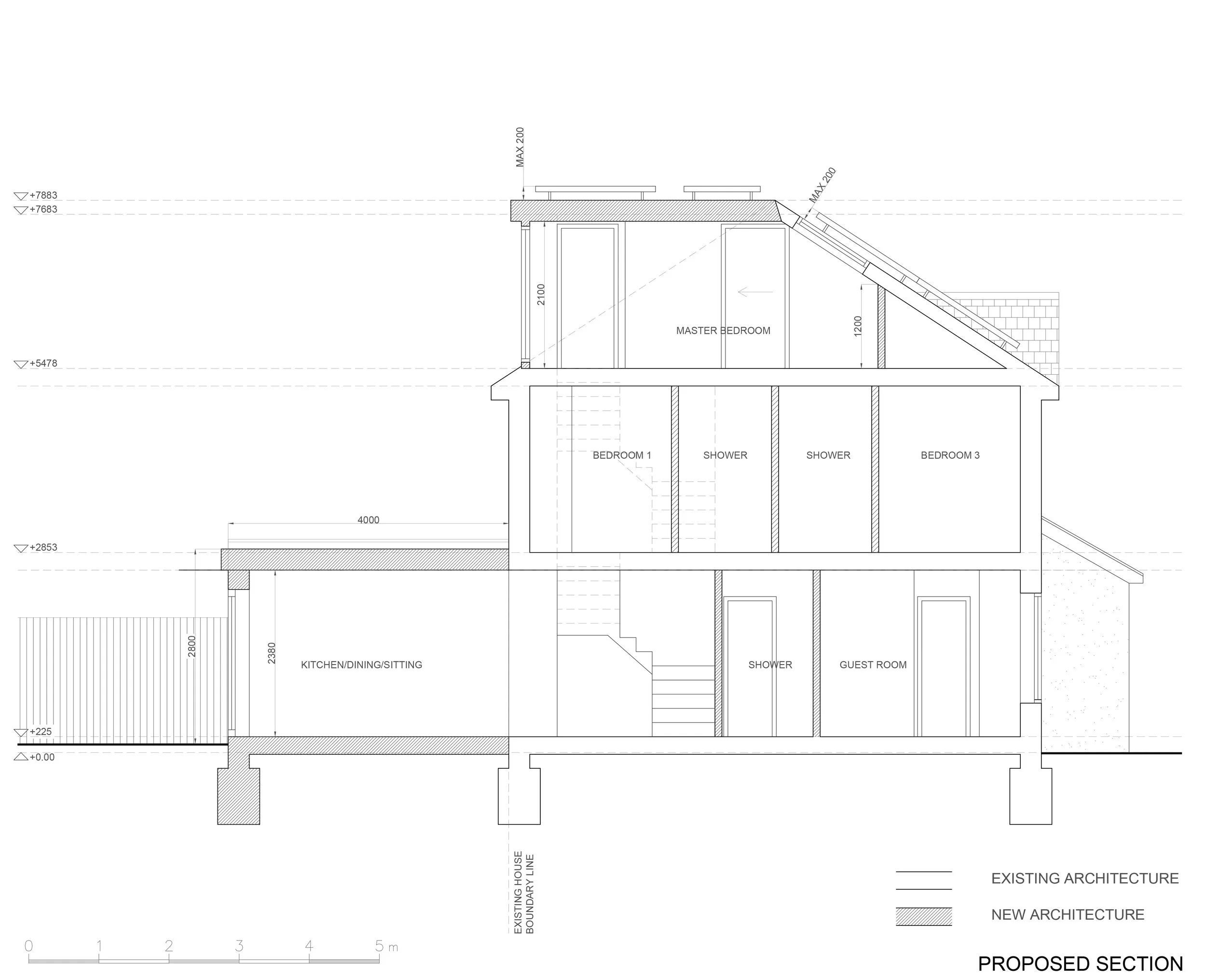

Section through a detached Kingston house by Atelier AṅK, showing floors, open-plan kitchen/living, lit stairwell, side and rear extensions, and loft with Juliet balcony.

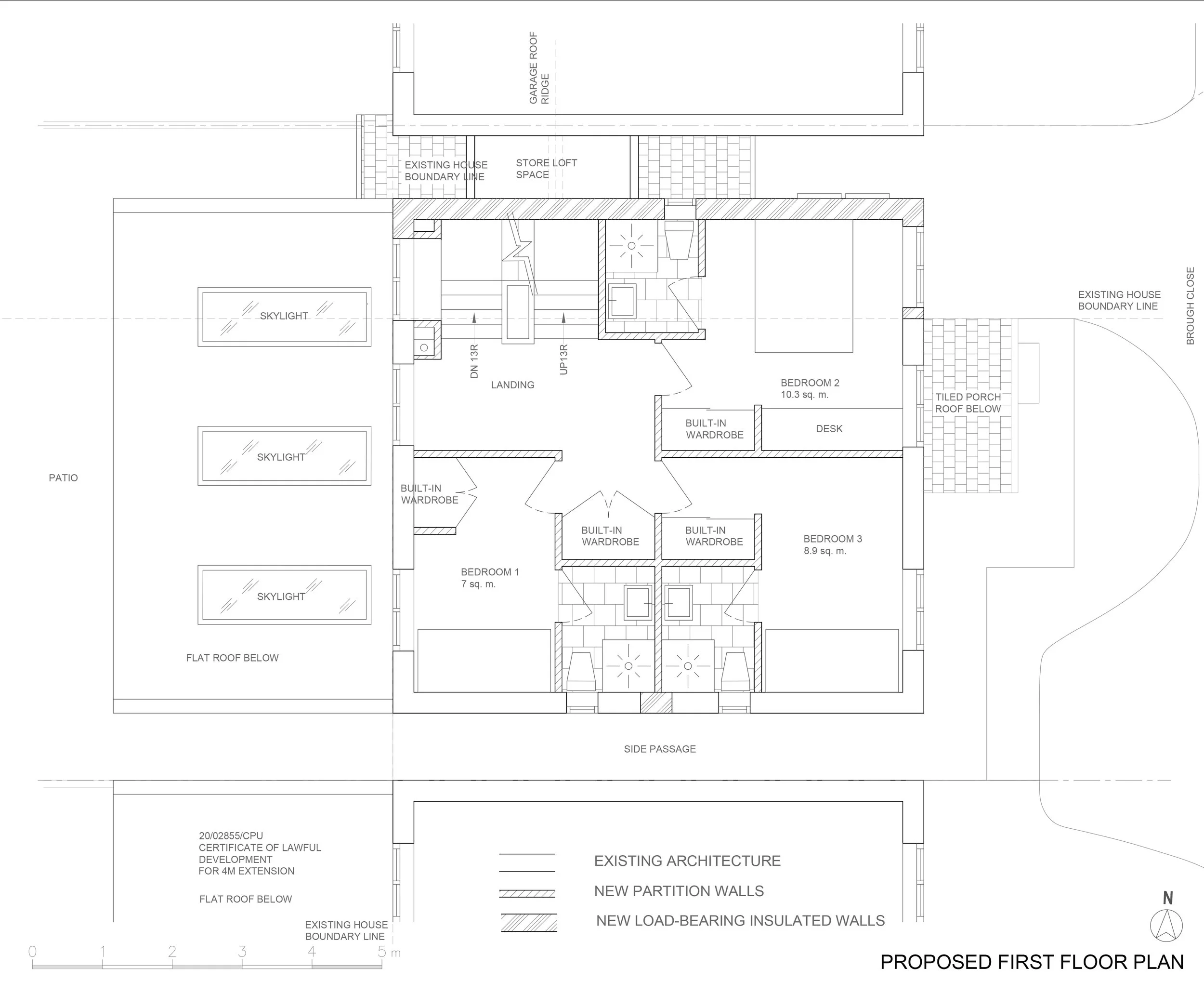

Proposed first floor plan of a detached Kingston house by Atelier AṅK, showing three en-suite bedrooms and a large landing usable as a transitional space and small seating area with bookshelf.

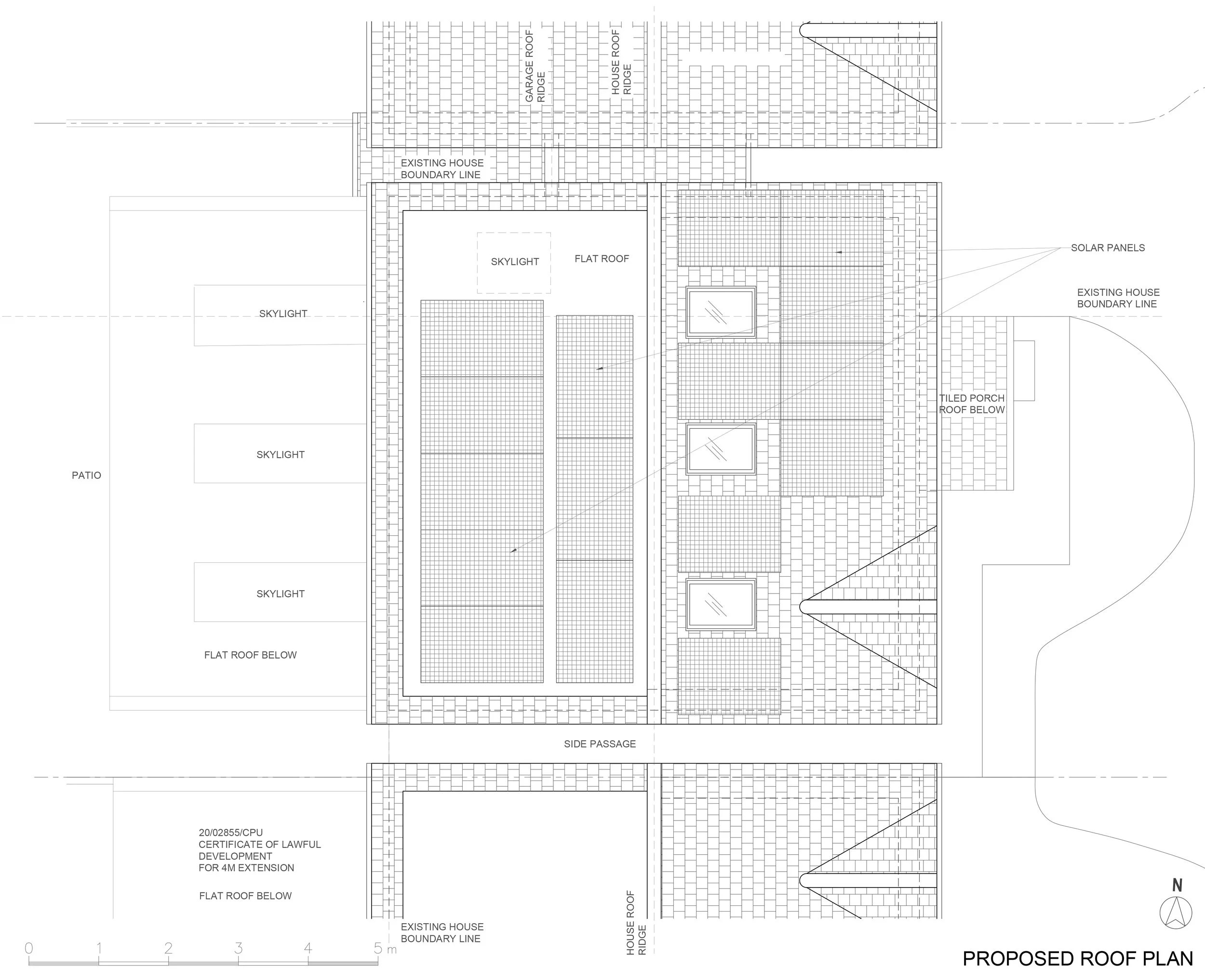

Proposed roof plan of a detached Kingston house by Atelier AṅK, showing roof layout with solar panels installed
Rear elevation of a detached Kingston house by Atelier AṅK, showing two-storey side, ground-floor rear, loft extension with Juliet balcony, large windows, and bi-fold doors

RESIDENTIAL

Brough Close | Double Storey Side and Rear Ground Floor Extension and Loft Conversion in Kingston upon Thames

Client: Private

Status: Planning Granted

Atelier AṅK has been appointed to enlarge a detached house in Kingston upon Thames. Newly bought house was too small for the big family. The task was to maximise the space to accommodate a family of two adults and four children of various ages, including a new-born baby, and occasional guests. A spacious open plan kitchen / living room was a key space for the family gatherings, as well as a spacious hall by the entrance to avoid crowding of the six family members.

The decision was made to extend the house to the side, which would allow for the new staircase to be fit in neatly. The idea was to make the staircase as brightly lit as possible allowing the natural light through the side windows and the skylight. The enlarged hall is arranged in the way it could be later converted into a utility room or a small office if the number of family members decrease with time or if necessity arises. The first floor landing was made bigger than usual as well, and it is accompanied by the window. This way it becomes not only a transitional space but a small open ‘room’ where an arm-chair or a two-seater, and a bookshelf can be placed.
